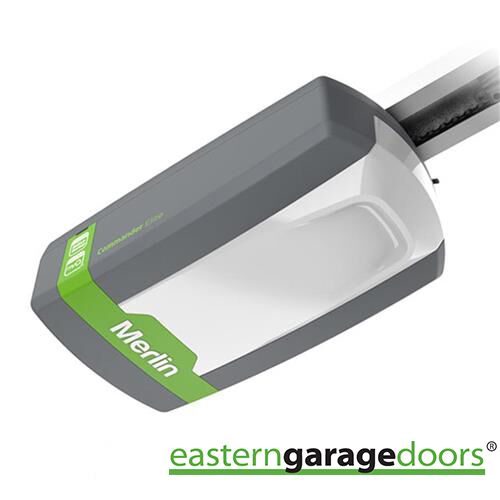

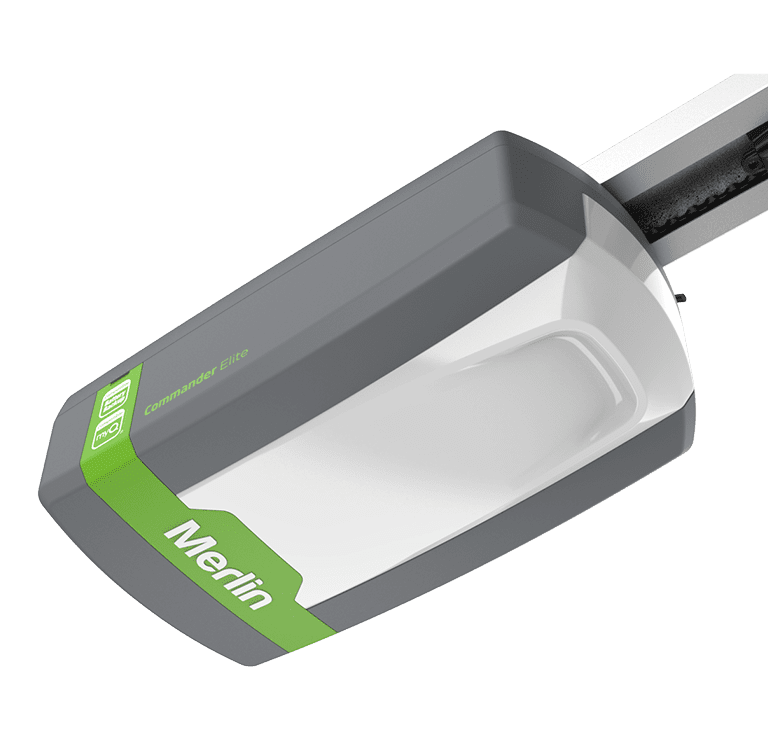

MS105MYQ Merlin Commander Elite

Merlin Commander Elite MS105MYQ

Australia’s favourite opener, Commander Elite is myQ compatible & Battery Backup compatible, with a heavy lifting power of 150kg and new powerful LED lighting. Powerful, quiet and compliant to Australian & New Zealand Standards, enjoy complete peace of mind with the market-leading 7 Year Warranty and built-in premium safety reversal technology, to ensure your family and possessions are protected. Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

Enquire About
Installation

Merlin Accessories
Compatibility Chart

Free Australia Wide Postage

Limited Stock Available

Product Price Does Not Include Product Installation

Add to wishlist

Categories: Sectional and Tilt Door Openers, Tilt / Sectional Door Openers

Downloads

Product Features

Smart

Quiet & Reliable

Safe & Secure

	myQ Compatible Technology Lets users create schedules, monitor, receive alerts and control the garage door opener away from home.¹
	Soft-Start and Soft-Stop Smooth operation.

	5-Year Warranty
	Quiet DC Motor Eliminates noise and vibrations through the ceiling and provide smooth operation.
	Heavy-Lifting Power Operates doors up to 100kgs.

	Security+ 2.0® Sends a new code with every remote click.
	Premium Automatic Safety Reverse Allows your garage door to stop and reverse automatically if obstructed going down or stop going up.
	Timer-to-Close Automatically closes the door after a pre-set amount of time.²
	Improved Transmitter Range Up to 18% better range meaning you can start opening your garage door sooner.³
	Automatic Force Sensing Automatically monitors and adjusts the force needed to open your garage with each operation.
	Manual Release Cord Allows you to open your garage door whenever needed.

1 Additional purchase of Merlin myQ Gateway and Safety IR Beams accessories required to enable myQ functionality.
2 Safety IR Beams must be installed to enable the use of Timer-to-Close. See User Guide for additional information. Smartphone not included.
3 When compared to other available Merlin products.

Safety Features

Premium Automatic Safety Reverse

With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

Manual Release

In case of power failure you can simply activate the manual release to open your garage door.

Specifications

General

24V DC motor with thermal overload protection
Input voltage: 240V AC
Rated door area up to 20m²
Max door weight: up to 150kg
Max peak pulling force: 1000 N
C-rail with belt drive
433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
Up to 64 memory registers
Courtesy light: Powerful LED Lighting
Min headroom required: 30mm

Door Specs

Maximum lifting under spring tension = 20kg
Suitable for steel and timber spring balanced doors

Door Opening and Closing Times

Door opening time: 18 seconds
Door closing time: 22 seconds
Based on a 2.4m high door

Door Height

Door height: 3.5m
Door width: 5.7m
Double dwelling

Included Accessories

Sale!

E960M Merlin 4 Button Premium+ Remote

$60.00

Add to cart

E138M Merlin Wireless Wall Button DISCONTINUED PRODUCT – REPLACEMENT PRODUCT E148M Four Button Wireless Wall Mount Remote Control

$65.00

Add to cart

They knew I needed emergency fixing and had someone come over the same day. It was quick, on time and a great price. Very happy

Luke Yu

02:09 20 Nov 23

Just finished my garage door repairing in wheelers hill, Eastern Garage Doors are very professional, quickly respond and affordable price , will highly recommend and trust their very good jobs!

chen bing

01:31 17 Nov 23

After sales service is exceptional

Jim G

01:59 16 Nov 23

I had a garage door issue which they were able to help me with over the phone instead of just sending out a technician. Great service. Highly recommend.

Michael Hoeboer

05:38 09 Nov 23

professional and effective service

Carman

23:34 31 Oct 23

Same Day quality service. Well trained polite and genuine technicians. Highly recommend.

Haritha Wijetunga

06:55 30 Oct 23

Our old motor was gone. Eastern can out and replaced motor. Fast and efficient service. Really happy. Thankyou

Laura A

06:43 30 Oct 23

excellent service

jan roberts

23:16 24 Oct 23

Excellent service from start to finish

McCabe Industries

04:25 16 Oct 23

Really happy with the overall customer service, advice and price New garage door looks amazing

Jamie walsh

02:52 13 Oct 23

Steve was exceptional. Highly recommend this company to anyone. They are always honest and reliable and get the job done.

Selene Tang

11:05 09 Oct 23

Very happy with the service provided by Eastern Garage doors. They installed a new garage door opener for me. I had a positive experience from getting a quote until finishing the installation.Steve arrived on time and did a fantastic job. He is an expert. He clearly explained everything. I would always go back to Eastern Garage doors for help. Would highly recommended them to everyone.

Rohan Kulkarni

01:55 03 Oct 23

Absolutely first class local business. Fast and efficient service. I see why you have so many 5 star reviews now. Highly recommended.

Brett Baseden

02:44 02 Oct 23

Excellent service.

Geoff Illing

07:49 22 Sep 23

Steve was the right combination of friendly, knowledgeable and informative.

Steven Johnston

02:49 15 Sep 23

I had an issue with my manually operated rear garage roller door coming out of it's guides and couldn't get it back in. I rang one highly rated garage door company in Bayswater twice but got zero replies back. I then rang Eastern Garage Doors who quoted me a fixed call out fee of $160 to fix the door issue and also a price to install a motor for that same door. Steve came out two days later, on time and he was brilliant. Retensioning the roller door so that it would go back into it's guides was a major effort and Steve's expertise was on full display. There was no way I could have done that. The installation of the motor was relatively simple. Great service, great price, great company... a rarity these days. I could not recommend Eastern Garage Doors highly enough and will definitely use them again if a problem arises.

Enzo Morf

09:18 14 Sep 23

Wish to thank Eastern Garage Doors for helping me to solve my issue with my panel lift garage door. I truly appreciated the prompt and affordable quote. Thankyou to Steve who arrived on time, fixed the issue in such a cheery and professional manner. I would highly recommend Eastern Garage Doors

Cherylanne McCracken

03:08 14 Sep 23

Highly recommended! Service is absolutely fantastic, very quick, very professional, very polite guys.

BELLA CHERKASSKAYA

01:02 01 Sep 23

Great job done by Steve. Very courteous, knowledgeable and swift. Did the job perfectly..Good luck. Will recommend to others.

Hemant Kukde

23:21 22 Aug 23

Great service from the Team at Eastern Garage Doors. They were all very courteous, efficient,prompt and with good advice re our garage roller door problem..It was a hassle free experience to have a new door supplied and installed at a competitive price.A pleasure dealing with this business which I can highly recommend.

Gary H

07:04 01 Aug 23

Reasonable price. On time and prompt installation.

Ken Wong

04:43 01 Aug 23

It was a pleasant experience when seeking help from these garage door experts.The schedule was well negotiated and flexibly adjusted per need. The possible options, replacing product/price was also clearly stated before the onsite check time for user reference.Then today Garen came. He is such a great professional with a thorough work done. Clear start to clear end with a lot of questions explained and some useful general tips with great patience.Now I’m happy with the auto-controlled door again after the placement. Thanks to Eastern Garage Doors and Garen!I would definitely recommend Eastern Garage Doors to whoever have questions with garage doors.

Holle Meng

06:25 31 Jul 23

Eastern Garage Doors set a new bar for service and efficiency in the installation of two new smart gate motors at our residential complex. After months of sourcing quotes, their swift and competitive response was a breath of fresh air. They displayed professionalism and in-depth technical knowledge, and seamlessly retrofitted the new motors into the existing phone app that residents were already using, simplifying the transition immensely. The system works flawlessly, reflecting their high-quality work. I heartily recommend Eastern Garage Doors for any gate or garage door installations.

Jaye Roob

06:27 26 Jul 23

Exceptional... highly recommend

Rob MICHAEL

06:18 26 Jul 23

Excellent service

David Hewitt

01:05 24 Jul 23

Superb n efficient job by Joe.If u want a good job done wth reasonable pricing go wth eastern garage doors

Tze Yong Liew

05:01 21 Jul 23

Best in the business. Used a few times now and the service they deliver is fantastic. All staff are friendly from initial phone call to staff who come on site to do the work. Thanks again for great service at a great price. Highly recommend Eastern Garage Doors.

John Beach

00:29 20 Jul 23

Great service, friendly staff, they come when they say they will and can't recommend enough on a great job. Very reasonable too.

Terri Battisson

04:32 13 Jul 23

Very prompt, thorough and friendly service in repairing my garage door. I would definitely use again and can highly recommend.

Paul Ackerman

01:48 12 Jul 23

The staff in Eastern Garage Doors are fantastic with excellent communication. My first call was answered by Carolyn, she was friendly and super helpful. She made the booking then texted me to confirm the time.Steve came on the time, he is efficient, truly professional and expert. My garage was fixed quickly. I will definitely recommend this company to my family and friends.

James To

01:21 06 Jul 23

Hi all . Steve servived by mother's garage door..an absolutely outstanding team..prompt....honest and super friendly. Highly recommended 👌

Stuart Hill

12:08 25 Jun 23

Most impressed with this company. Could thoroughly recommend them.From the booking, to arriving in the given time frame, to the very friendly Steve who serviced my garage door. A pleasure to do business with them.

Susan Hill

06:40 22 Jun 23

Steve is a pleasant person, easy to talk to and did a really good job. Although early days, the test went really well and I was impressed with Steve's understanding of our set up and the need to make a few weight adjustments. Overall first class.

Michael Phillips

02:29 20 Jun 23

Our old door hardware broke, next day had guy out to fix. Was able to get door open to get car bins out what we needed. Strongly recommend to replace due to age of the hardware ( approx 20years old) but could fix the parts if wanted to. Explained everything in simple terms. Decided to go all new hardware and make it a electric door opening. All fixed when said would be quick and promptly. Strongly recommend eastern garage doors

brett milburn

03:26 19 Jun 23

Chris Farrugia

03:25 09 Jun 23

What a fantastic company, all the staff are knowledgeable and helpful, the ladies in the office were kind and courteous. The technicians were efficient and professional. They were happy to help with all my questions and provided a brilliant seamless service. I would definitely recommend this company to anyone needing a garage door repair, service or replacement.

Andrea Fox

09:22 07 Jun 23

Really top-notch communication, I was happily surprised by how responsive and helpful they were when the garage door to my rental was stuck closed and wouldn't open. They coordinated with myself and my rental provider for a really quick outcome, and were super sympathetic to the issue we faced. Highly recommend!

Andrew Pricop

22:58 06 Jun 23

Took the day off work to meet them, cancelled. Love not having my garage for over 4 months. This bloody door has been a disaster

RRB Bomar (RehabilitationGamingBomar)

23:41 05 Jun 23

Really pleased with the entire process - from assessment to installation. Looks amazing!

Sue Reddish

06:50 05 Jun 23

EGD were a pleasure to engage with from start to end. We've been frustrated with our buggy garage motor for a long time and Joe helped set up a Merlin replacement + new remotes to fix our issue in under 30 mins. Really grateful for reasonable pricing, prompt appointment booking within the week and smooth process overall. Highly recommended!

Hang

05:00 01 Jun 23

Quick to come out and fix the issue I had with my door and at a really reasonable price. Highly recommend.

Amber Williams

08:25 29 May 23

I would recommend Easter Garage Doors for the following reasons.Fast response to my initial enquiry and follow up.Installation was fast and efficiently completed, staff courteous.The product is competitively priced, operates smoothly and looks greatWe would not hesitate to recommend EGD services to others.

Andys Music

04:45 25 May 23

Most happy with the high standard of customer service

Fred Galea

01:00 25 May 23

Friendly , prompt services .Big thank you to Georgia who guided me solve my remote problem in short time .

jenny luong

11:25 24 May 23

Wow so impressed with Eastern Garage Doors! After having another company out previously that were no help I’d say look no further than these guys! From my first call to Carolyn it was fantastic. Great follow up to confirm they could do the job and Steve the Tradesman was FANTASTIC! He arrived on time and explained what needed to be done. Couldn’t recommend Steve highly enough. The whole process was very professional thank you!

Elizabeth Medhurst

03:35 22 May 23

I received 3 quotes from different providers for a new electric garage door. The other 2 providers said due to the construct of my garage they could not do the job. Not only did Eastern Garages fulfil the job however their installers and electrician were simply the best people to deal with. So refreshing to have young tradesman take so much care about what they do. Simply next level of service.

Paul Joseph

08:51 16 May 23

Outstanding service provision by Eastern Garage Doors in 2022. My tilt garage door was serviced, issues with signal activating door fixed in addition to my automatic gate being repaired so that it no longer sticks when trying to open. Steve went through all the different options and then in agreement rectified matters using cost effective solutions. Great customer service from staff via telephone and SMS update provision also. From this experience I recommend 100%.

04:26 16 May 23

Fast and friendly service. Steve fixed our garage door and installed a door opener in under an hour. Fabulous!

Neil Royle

10:19 09 May 23

Thank you, Eastern Garage Doors (EGD). I called EGD when another service cancelled my appointment, shortly before technician was due to arrive, without apology. An appointment that I waited for a couple of weeks. I drove almost an hour to get to there.EGD agreed to attend within a couple of days, and did a thorough job replacing the garage door motor, despite pouring rain. Would have given a 5 star if there was confirmation of job completion after a second visit to complete the work, but appreciate that it was organised so I didn't have to drive there again. Very happy with the result and the effort in working with a tight space.

Oli T

05:36 27 Apr 23

Was so happy with work done to rectify a difficult pedestrian gate - from the follow-up to come out and look at it; offering a solution to fix it and to delivering on promise of same day removal, fixing and return and onsite works. Thank you to John and Team for a fabulous job!

Jenny Stephenson

10:22 30 Mar 23

reliably prompt, knows what to do, great job done :)

Estie Bav

22:49 23 Mar 23

Very happy with John and the service he provided today. In fact couldn’t be happier. Very thorough and explained everything to Don throughout. Thanks Di

Di Fuller

07:45 15 Mar 23

John is a great technician and always quick with responding to your call. We have called out for issues that arise occasionally with our electric gates, and we always had good service.I highly recomend Eastern Garage Doors, to anyone with issues or servicing. 👍

Albert Merilli

22:23 27 Feb 23

It's been a very long time since I've encountered this type of courteous, prompt and professional service. From the initial phone call to the execution of works on the same day, due to family circumstances, Eastern Garage Doors delivered an exceptional service. I cannot recommend them high enough. Thank you team & thank you Cameron, for being so professional on such a hot day too. Will recommend this amazing company to anyone that requires anything to do with garage repairs and maintenance. Love your work guys!

Pam Dimi

19:32 27 Feb 23

The most seamless and efficient customer engagement ever. Easy to contact. Prompt response. People who know what they are doing and get the job done. Highly recommend.

Ron Lane

07:11 17 Feb 23

It was good overall experience. Installers were helpful and they clean up before leaving.

dhseong

12:52 16 Feb 23

Great service from the team, from enquiry to completion. Very prompt, efficient and even an SMS when the technician was going to arrive today. Very reasonable price too for the Merlin roller door motor installed. Thank you.

Ben Kwok

06:53 10 Feb 23

The team did a terrific job, hassle free from start to finish and a great quality job.

Mike McKay

05:13 03 Feb 23

Fast service and great phone customer service.

Sharyn Saxon

09:44 01 Feb 23

I highly recommend Eastern Garage Doors. I dealt with Louise in the office. She was MOST helpful. After explaining my situation, she immediately arranged for John to come out & fix our garage door. I was very happy with the end result. Thank you Team.

Susie Adamtzikis

09:00 21 Jan 23

Lovely gentleman attended at expected time. Very pleasant reassuringly Manner

June Douge-Rowe

05:21 20 Jan 23

Wow, I have had an excellent experience with this company. They attended the issue very quickly and their invoice is more than reasonable. I have advised my staff members to use this company for all future garage doors issues. I wish I knew this earlier.

Elena Smirnova

03:14 18 Jan 23

Excellent and friendly service from the beginning to installation. Could not speak highly enough of Eastern Garage Doors. Thanks once again - Greg and Alison

Greg Dulvey

07:04 13 Jan 23

Prompt service. Good advice. Price appeared to be reasonable. Installation was no fuss and easy for me.

philip kajewski

07:02 12 Jan 23

Excellent and professional service from Steve

Eng Ching Goh

00:05 14 Dec 22

Fantastic Company to deal with from the start ,from the communication at sales to the friendly and professional service tech Steve highly recommend Eastern Garage doors , thanks again BrianL

Brian Leahy

07:29 12 Dec 22

Tom and Cameron did an excellent job with my two doors and canopy. Was not the easiest install, but they managed it proficiently. All delivered as promised.

L ll0s0j

21:20 26 Oct 22

Great service, great quality door. Super happy with these guys.

Paul Hamilton-Smith

02:04 14 Oct 22

i could not be more impressed with this business. i wish i needed to buy lots of garage doors as they were an absolute pleasure to deal with. wishing you every continued success.

Alicia Eldridge

08:21 11 Oct 22

Within 2 hours of my contact the new motor was installed to our garage door. Great service Eastern Garage Doors

Brian Dalby

04:05 11 Oct 22

Prompt, expert, friendly service as usual.

Murray Crabb

04:13 07 Oct 22

Great friendly company. Highly recommend

Dukes

01:29 06 Oct 22

Exceptional service, fast turn around time for repairs. Thanks Eastern Garage Doors

Trav Brown

09:16 27 Sep 22

Professional knowledge and installation highly recommended

Rex Tung

05:27 26 Sep 22

Francis Fung

22:30 25 Sep 22

Tim Dowdle

02:16 14 Sep 22

Steve came out and took a look at my garage door which has been playing up. Got everything running smoother than ever, gave me a run down of the problem, and made sure I knew what preventative maintenance I could do to avoid the same issue in future. Very happy with the service, got a fast response to my original enquiry, Steve and the whole team were just lovely to deal with. Highly recommended!

James Allister

10:16 09 Sep 22

Same day response when we had a problem.As we are both seniors, needed the problem fixed urgently.Competent and courteous service

Arthur Rendell

02:53 02 Sep 22

Great work, on time and as promised price excellent

Lorella Carlig

02:48 30 Aug 22

Eastern Garage Doors were very professiional organising the replacement of my roller door, including quoting and the installation, the new door looks great. Kevin

Kevin Wells

01:53 30 Aug 22

Joe was able to quickly fix our malfunctioning garage door and it's now back to perfect working order. It's great when someone can just get it fixed. Thanks Joe

Lee G

00:38 18 Aug 22

Fantastic and efficient service. Super impressed. Thank you

Pip Lewis

04:02 16 Aug 22

Found EGD through internet search and struck GOLD. Excellent service all the way through and also prepared to deal with unforeseen circumstances. Many thanks to all their team.

Paul Griggs

03:01 08 Aug 22

5 stars to Eastern Garage Doors for their excellent service from the very efficient office staff to the friendly and helpful technicians who installed my new sectional door & opener today. The process was seamless and completed in a timely manner with no hiccups. Highly recommend this business

Paul Pavia

03:51 05 Aug 22

Friendly and helpful service. Pet welcoming, extremely punctual and efficient! Thanks John, Steve, Louise and team for looking after our old electric gate and keeping it going! It is most appreciated. Great job!

Wendy Harrison

23:46 02 Aug 22

Service & communication was great from start to finish. Steve was very friendly, knowledgeable & helpful with any questions we asked. Happy with the end result! Would highly recommend Eastern doors.

Kaye Butterworth

03:33 01 Aug 22

Very professional. Inspected our 14 year old noisy sectional garage door on the Friday afternoon and advised we only needed a new motor. Installer arrived the following Thursday and now we have an almost silent opening and closing door with battery backup. Very happy.

Rin Strybosch

06:25 29 Jul 22

Eastern Garage Doors excellent job, polite and efficient service.Done in good time as arranged, would not hesitate to use again

Peter Rosenberg

02:53 24 Jul 22

Punctual and got job done accurately despite Covid interruptions.

Simon Corrigan

04:47 22 Jul 22

Great communication, arrived on time and a pleasure to deal with. Highly recommended.Thanks Steve.

Craig Ryan

23:59 21 Jul 22

John from Eastern Garage Doors was an absolute gentleman. He popped out to inspect our door in Ferntree Gully that wasn't working and within 1 minute had assessed the fault and advised us on the best course of action. Very friendly and professional, would highly recommend using this company to deal with.

Rob Rich

03:05 18 Jul 22

Timely communication and prompt service. Highly recommend the team at Eastern Garage Doors!

Vivi van Gaal

23:52 13 Jul 22

Clark Cao

07:54 13 Jul 22

Eastern Garage Doors did a great job helping us choose a garage door style and colour that suited our house.The installation of door was excellent.I would highly recommend.

Jerome Judd

04:11 11 Jul 22

A tricky install that was sorted out without any fuss. Thankyou.

Simon Finch

09:11 01 Jul 22

I have been extremely happy with the quality of service & care that Eastern Garage Doors have provided over the past 12 years. I have no hesitation in recommending this company to anyone.

Mitta Hirsh

10:37 22 Jun 22

John came out and fixed our garage door. He did an excellent job. I would highly recommend Eastern Garage Door Services to everyone, you will not be disappointed. Thanks

carmen corrigan

22:46 17 Jun 22

Ann Pask

07:20 17 Jun 22

I needed a major repair for my garage door. The repair people arrived on time and the job was done quickly and to my full satisfaction.I have used the company before to install an automated door opener. I highly recommend Eastern Garage Doors.

Rita Stein

08:47 16 Jun 22

Joe did wonderful job for a regular service, professional and very fast. Definitely will recommend to family and friends!

Dan Kong

06:21 14 Jun 22

‹

›

Cart

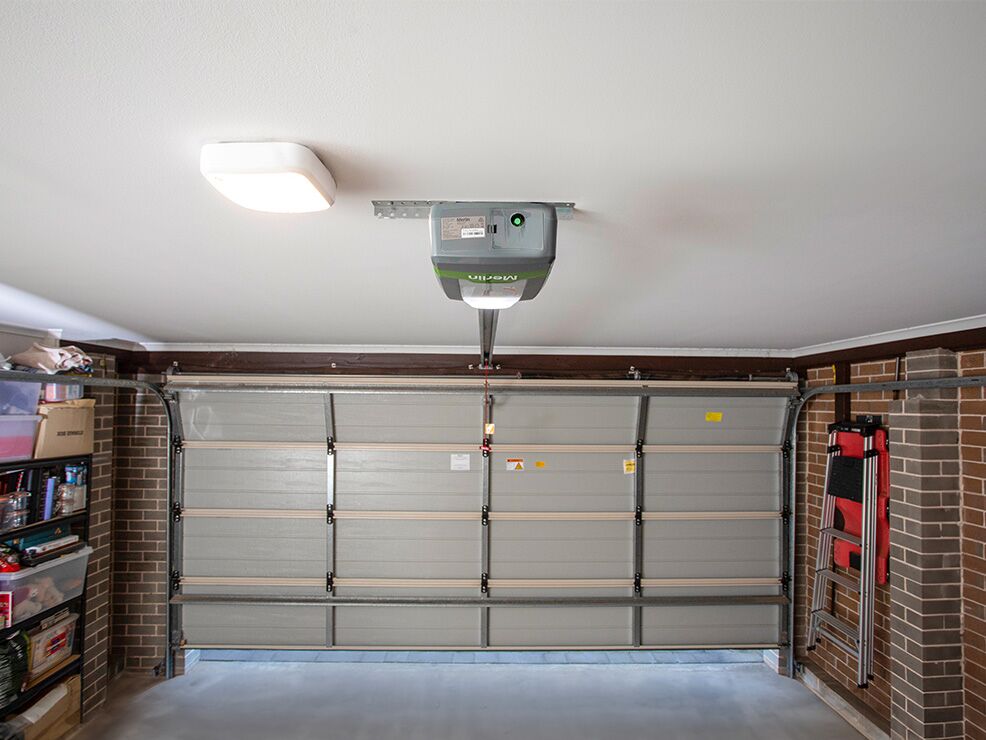

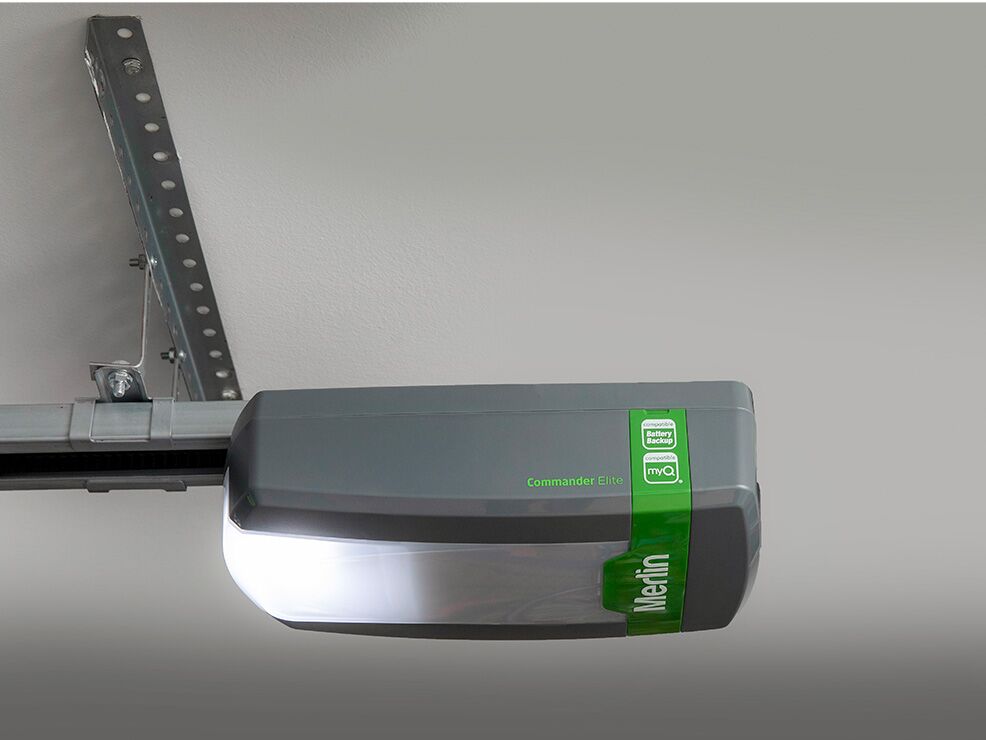

MS105MYQ Merlin Commander Elite

Merlin Commander Elite MS105MYQ

Enquire About Installation

Merlin Accessories Compatibility Chart

Free Australia Wide Postage

Limited Stock Available

Downloads

Product Features

Smart

Quiet & Reliable

Safe & Secure

Safety Features

Premium Automatic Safety Reverse

Automatic Force Sensing

Manual Release

Specifications

General

Door Specs

Door Opening and Closing Times

Door Height

Included Accessories

Related products

Supplier Partners

A Dedicated Family-Owned Business

Contact

Service Areas

Download the Eastern Garage Door Brochure

Download the Eastern Garage Door Brochure

Free Delivery

Free Returns

Need help? (03) 9812 3062

Money Back Guarantee

Quick Links

Contact Information

OFFICE:

PHONE:

E-MAIL:

Follow us on Facebook

1

2

3

4

5

Login

Register

Enquire About
Installation

Merlin Accessories
Compatibility Chart
