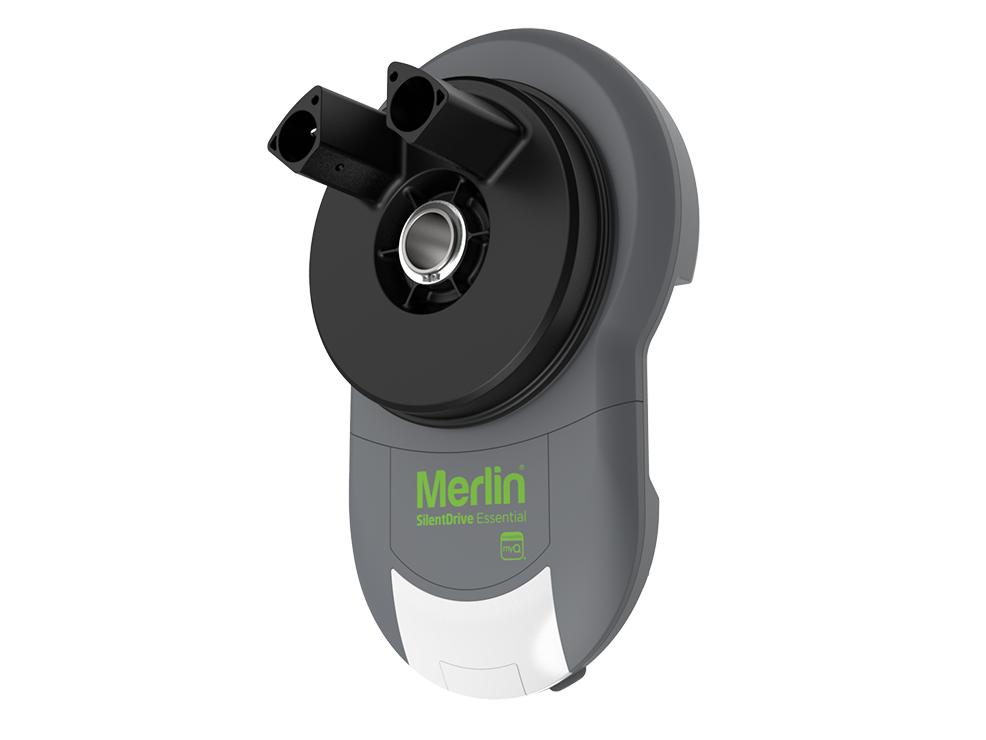

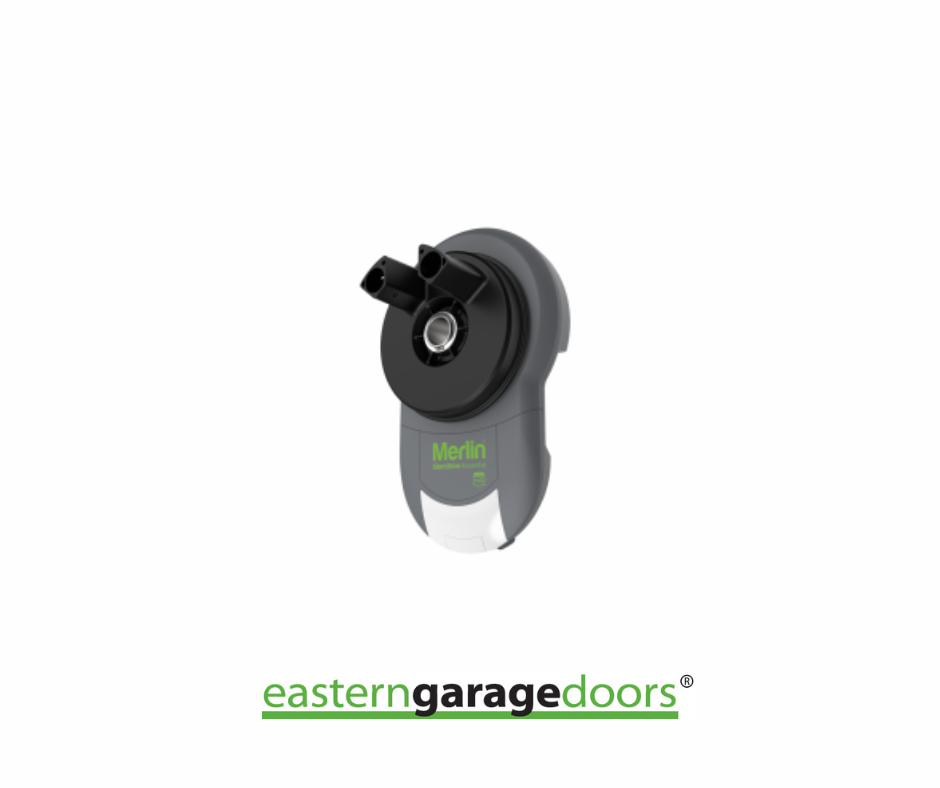

Merlin SilentDrive Essential MR655MYQ
Merlin SilentDrive Essential MR655MYQ
The NEW SilentDrive Essential is myQ compatible, with bright LED lighting, quiet operation and includes 2 x premium handheld remotes plus a 5-year warranty. Powering single or double residential roller doors.
SilentDrive Essential MR655MYQ Spec SheetProduct Features
Smart |
Quiet & Reliable |
Safe & Secure |
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 Additional purchase of Merlin myQ Gateway and Safety IR Beams accessories required to enable myQ functionality.
2 Safety IR Beams must be installed to enable the use of Timer-to-Close. See User Guide for additional information. Smartphone not included.
3 When compared to other available Merlin products.
Safety Features
Premium Automatic Safety Reverse
With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.
Automatic Force Sensing
Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

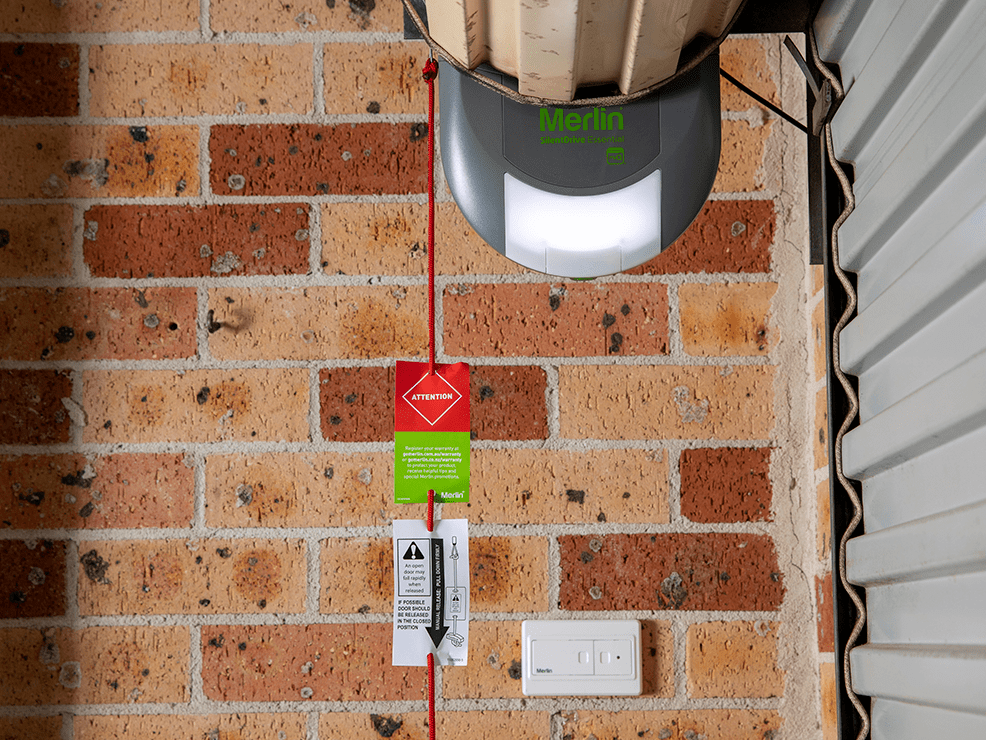

Manual Release
In case of power failure you can simply activate the manual release to open your garage door.
Specifications
General
- 24 DC motor with thermal overload protection
- Input voltage: 240V AC
- Rated door area up to 16.5m2
- Drum rotations: 4.5
- Max Door weight: up to 100kg
- Max peak pulling force: 500N
- Minimum side room 45mm
- 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
- Up to 64 memory registers
- Courtesy light: LED
- Noise rating: 1M 57DB
Door Specs
- Maximum lifting under spring tension = 20kg
- Suitable for steel spring balanced doors
Door Opening and Closing Times
- Door opening time: 13 seconds
- Door closing time: 13 seconds
- Based on a 2.4m high door
Door Height
- Door height: 4.5m, 3.0m
- Door width: 3.6m, 5.4m
- Single dwelling
