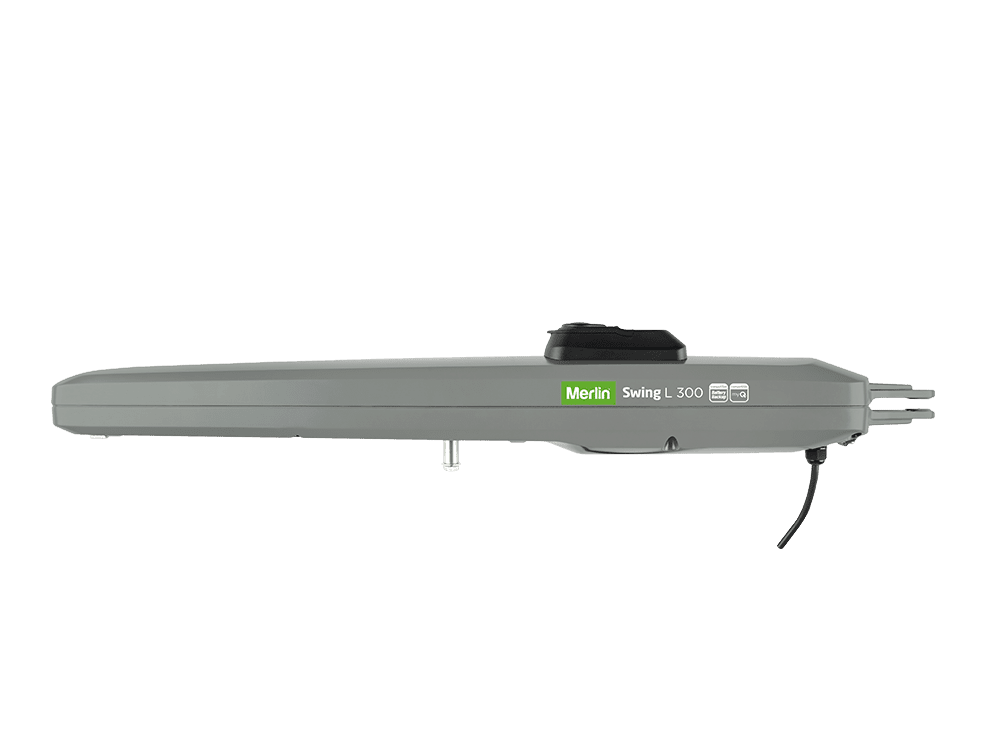

Merlin Swing L 300 Single Kit

Heavy-Duty Performance: Merlin’s Swing L 300 Swing Gate Opener is suitable for residential single swing gates up to 3 metres.
myQ Technology Compatible: Allows remote monitoring and control of the gate via the myQ app, enabling users to create schedules, receive alerts, and operate the gate from anywhere.
Battery Backup Compatible: Ensures continued operation during power outages when paired with an optional battery backup system.
Quiet Operation: Designed for powerful yet quiet performance, ensuring minimal noise during operation.
Warranty: Backed by a 3-year warranty, providing peace of mind and assurance of quality.

Enquire About Installation

(03) 9812 3062 Email Us

Product Price Does Not Include Product Installation

0 reviews

Add to wishlist

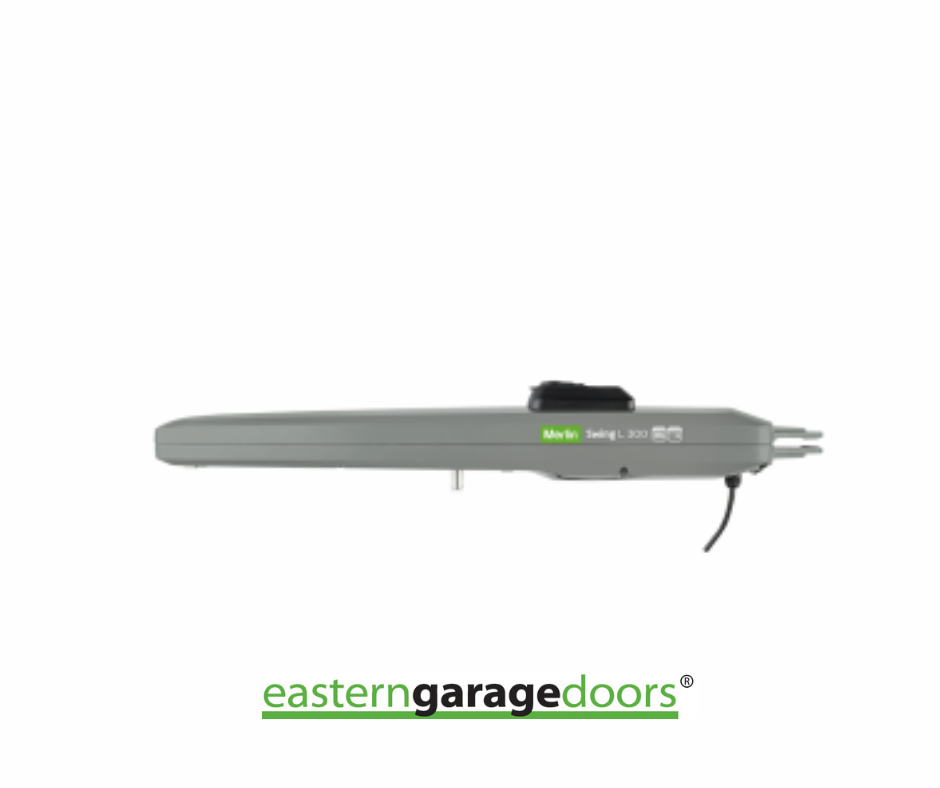

Eastern Garage Doors presents Merlin’s Swing L 300 Swing Gate Opener, the ideal solution for residential single swing gates up to 3 meters.

With its IP44 rating, the Merlin Swing L 300 offers heavy lifting power performance for swing gates of up to 300kg for 2 meters, 250kg for 2.5 meters, and 200kg for 3 meters. Choose from mains or low voltage options and enjoy myQ capability and battery backup compatibility.

This powerful, quiet gate opener is compliant with Australian and New Zealand Standards and built-in premium safety reversal technology to safeguard your family and possessions.

Plus, the Merlin Security+2.0 encryption rolling code technology ensures perfect operation under all environmental conditions and from a greater distance than ever before.

Product Features

SMART
	MYQ CAPABLE TECHNOLOGY lets users create schedules, monitor, receive alerts and control the gate opener away from home.¹
	LCD DISPLAY for fast and intuitive programming setup.
	SOFT-START AND SOFT-STOP for smooth operation.
	SPEED ADJUSTMENT allows you to increase and decrease opening and closing gate speeds.
	PEDESTRIAN MODE allows for customised gate opening access.
QUIET & RELIABLE
	240V MAINS VOLTAGE (Low Voltage option available)
	3-YEAR WARRANTY
	IP44 WEATHER RESISTANT ingress protection IP44 suitable for outdoor installation.
	QUIET DC MOTOR eliminates noise and vibrations, provides smooth operation.
	BATTERY BACKUP COMPATIBLE ensures access even when the power is out.²
	120° WIDE OPENING ANGLE
	SINGLE SWING GATE UP TO 3 METRES
SAFE & SECURE
	SECURITY+ 2.0® sends a new code with every remote click.
	PREMIUM AUTOMATIC SAFETY REVERSE function will allow your gate to stop and reverse automatically if obstructed in opening or closing.
	TIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.³
	IMPROVED TRANSMITTER RANGE has up to 18% better range meaning you can start opening your gate sooner.⁴
	AUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your gate with each operation.
	DISENGAGEMENT MECHANISM allows you to manually open the gate whenever needed.

¹Additional purchase of Merlin myQ Gateway and Safety IR Beam accessories required to enable myQ functionality.

²Additional purchase of Merlin Battery Backup accessory required to enable Battery Backup functionality

³Safety IR Beams must be installed to enable the use of Timer-to-Close. See User Guide for additional information. Smartphone not included.

⁴When compared to other available Merlin products.

Included Accessories

2 x Four Button Remote Control (Security+ 2.0 & Security+) (E970M)

Logic Box

Transformer box only for Low Voltage Kit

Specifications

General

Maximum Gate Width & Weights

Maximum Gate Width
- 200kg for 3m gate
- 250kg for 2.5m gate
- 300kg for 2m gate
Maximum width for single gate: 3m

Standard Specifications

Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
Motor Voltage: 24 VDC
Input Power: 50 W
Ambient Temperature Range: -20 – +55*C
Max peak pulling force: 1500Nm
Max Travel Speed:Opens 120′ in 13 – 15 seconds
Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 technology
Compatible with myQ technology
Gate opener capacity of up to 64 memory registers
IP44 Weather Resistan

Safety Features

Premium Automatic Safety Reverse

Function will allow your gate to stop and reverse automatically if obstructed while opening or closing.

Automatic Force Sensing

Monitors and adjusts the force needed to open your gate with each operation.

Disengagement Mechanism

Allows you to manually open the gate whenever needed.
