Merlin Rural Gate Opener – Swing LR 500

Swing LR 500 Manual
The Merlin Swing LR 500 is a durable and reliable gate opener designed for smooth, quiet, and long-lasting performance. Built to handle medium–heavy duty swing gates, it combines strength with advanced engineering for effortless operation. Supplied with the official spec sheet, this opener is ideal for rural properties seeking security, convenience, and reliable automation.

Solar and Main Power Kit Options Available.

Enquire About Installation

(03) 9812 3062 Email Us

Product Price Does Not Include Product Installation

0 reviews

Add to wishlist

Category: Swing Gate Openers

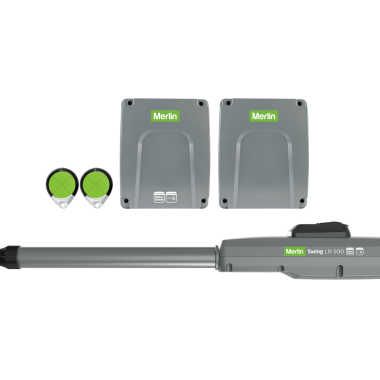

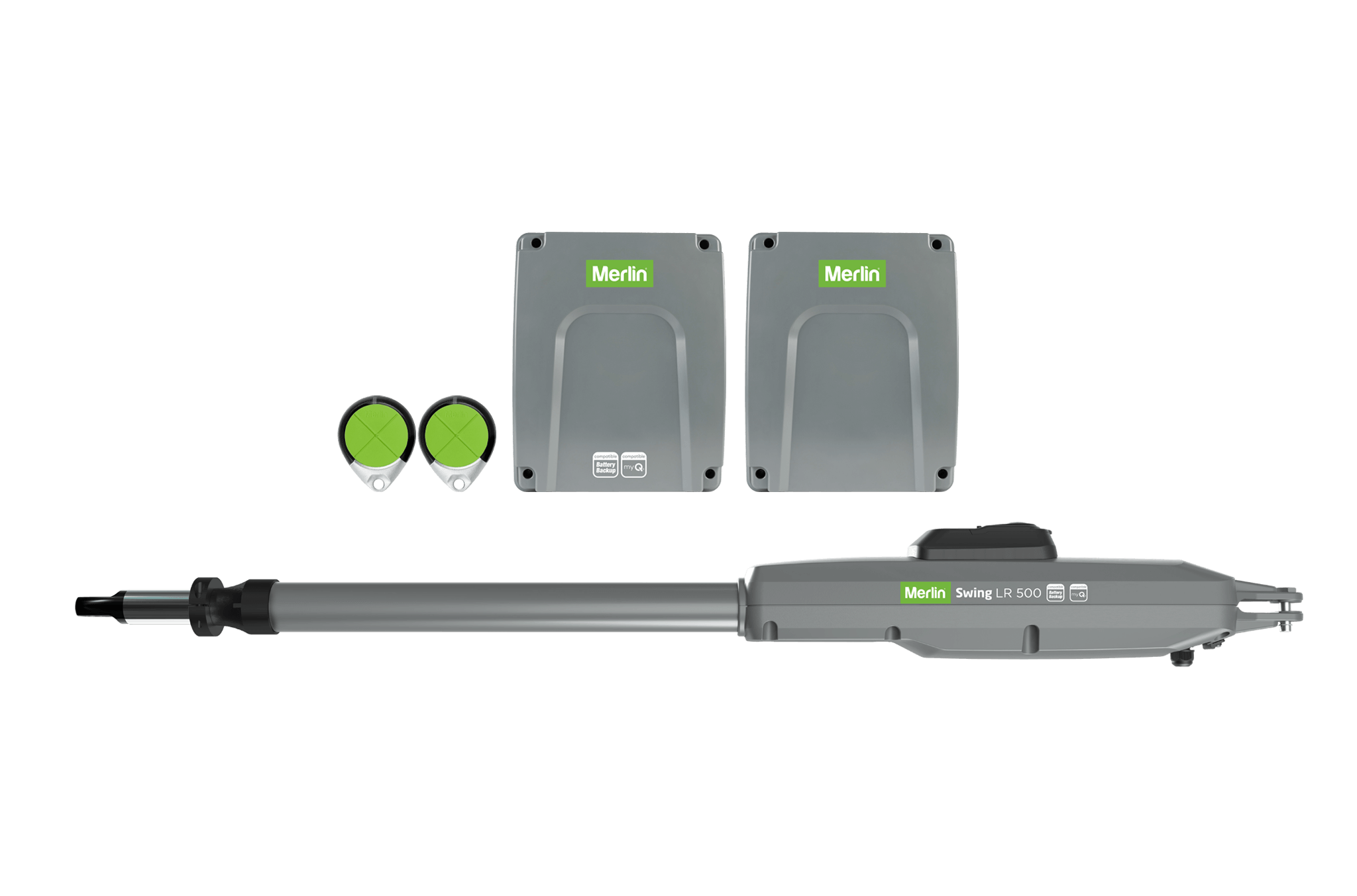

Rural Gate Opener with Mains Power Kit – MRGLSK-MP

The Merlin Swing LR 500 is a powerful, quiet, and reliable solution for rural properties and larger swing gates. Designed for single gates up to 5 metres wide, it combines strength with smart technology to deliver safe, secure, and convenient access every time.

Equipped with a quiet DC motor, wide 120° opening angle, and soft-start/stop operation, this opener ensures smooth and low-noise performance. Built for the outdoors, it features IP44 weather resistance and comes backed by a 3-year warranty for added peace of mind.

Whether powered by mains electricity or the Merlin Solar Kit, you’ll enjoy reliable operation in any setting

Downloads

Merlin Swing-LR-500 Brochure (1)

Merlin Swing-LR-500 Manual (1)

Product Features

Suitable for single swing gates up to 5m / 200–300kg
240V mains power with solar compatibility (optional)
Quiet DC motor for smooth, low-vibration operation
myQ app capable for remote monitoring & control
Premium safety with auto-reverse & Safety IR Beam compatibility
Weather resistant (IP44) for outdoor installation
3-year warranty for long-term reliability

Specifications

Maximum Gate Specifications:

5m gate – up to 200kg

4m gate – up to 250kg

3m gate – up to 300kg

Maximum width for a single gate: 5m

Gate Specs

Standard Specifications:

Solar Power Supply Rated Output Voltage: 21.6VDC to 35VDC
Motor Voltage: 24 VDC
Input Power: 50 W
Ambient Temperature Range: -20 – +55*C
Max peak pulling force: 1,500Nm
Travel Speed:Opens 120′ in 20-27 seconds
Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 technology
Compatible with myQ technology
Gate opener capacity of up to 64 memory registers
IP44 Weather Resistant

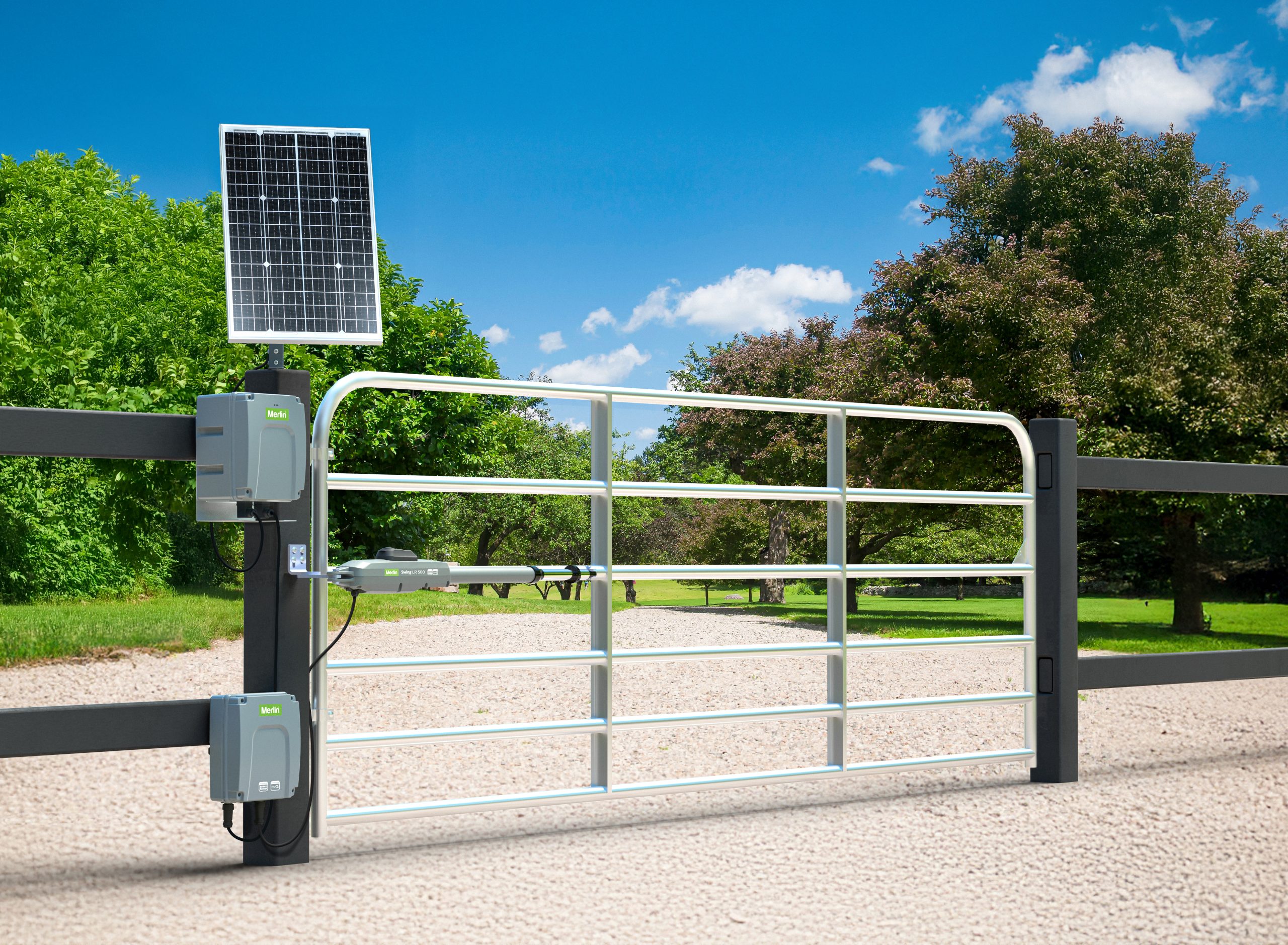

SOLAR-KIT:

IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel
2 x 18Ah batteries
40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*)
Adjustable Solar Panel Mounting Kit
240V Mains Power Pack included to fully charge the SOLAR-KIT before installation

* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required. The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

Included Accessories

2 x Four Button Remote Control (Security+ 2.0 & Security+) (E970M)

Logic Box

Solar or Low Voltage Kit

Powerful Add Ons

E850M Merlin Wireless Security Keypad

Convenient and safe access to your garage without using a remote control or key.

E840M Merlin Wireless Security Keypad

Convenient and safe access to your garage without using a remote control or key.

E964M Merlin Four Button Car Visor Remote Control (Security+ 2.0 & Security+)

Easily attaches to your car visor to control up to 4 garage doors or gates. Can be programmed to Security+ and Security+ 2.0 devices.
